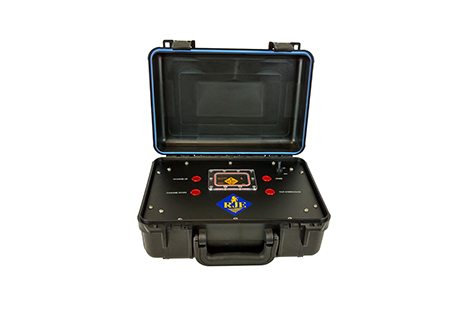

STI-350 SURFACE ACOUSTIC RECEIVER

This rugged directional receiver provides range and bearing to the ATT-400 series of transponders or acoustic pingers operating from 25kHz to 45kHz.

Designed for small boat operations, the STI-350 uses a directional hydrophone and adjustable staff assembly to locate underwater locations or targets marked with an acoustic beacon or ATT-400 transponder.

DATASHEET:
http://www.rjeint.com/wp-content/uploads/2017/01/STI-350-Receiver-System-Data-Sheet.pdf

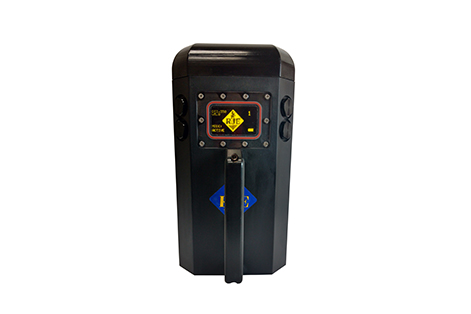

DTI-300A DIVER HELD ACOUSTIC RECEIVER

Using a highly visible LCD display and electronic compass, the DTI-300A acoustic receiver provides range and bearing to underwater locations marked with the ATT-400 transponder or an acoustic pinger operating between 25kHz to 45kHz.

DATASHEET:
http://www.rjeint.com/wp-content/uploads/2017/01/DTI-300A-Receiver-Data-Sheet.pdf

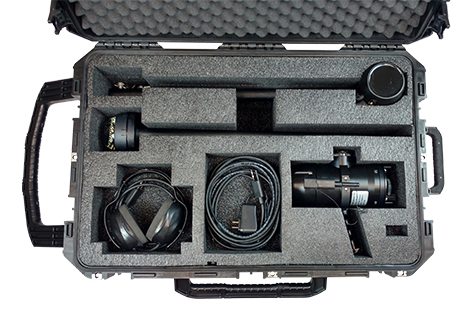

PRS-275 PINGER RECEIVER SYSTEM

The PRS-275 is a diver pinger receiver that can be converted to surface pinger receiver using a separate directional hydrophone and user adjustable staff assembly. The system includes the DPR-275 diver pinger receiver, waterproof headset, adjustable staff assembly with directional hydrophone, cable assembly, and shipping container.

DATASHEET:
http://www.rjeint.com/wp-content/uploads/2017/01/PRS-275-Pinger-Receiver-System-Data-Sheet.pdf

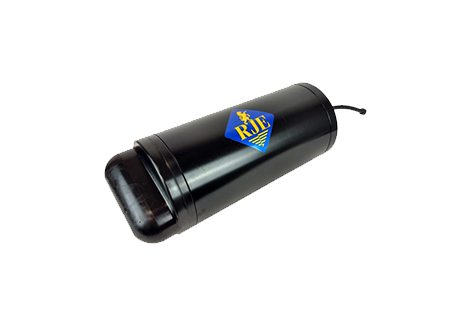

VADR-6000M SUBSEA VEHICLE ACOUSTIC RECEIVERS

The VADR-6000M acoustic directional receivers are small but rugged passive pinger receivers. The unit assists ROV and AUV operators in tracking acoustic sound sources from 8kHz to 45kHz. The receivers use an RS232 protocol for communication to and from the surface. The VADR series receivers can also track the ATT-400 acoustic transponders and have operational depths of 6,000m.

DATASHEET:
http://www.rjeint.com/wp-content/uploads/2017/01/SEEKER-Data-Sheet.pdf
